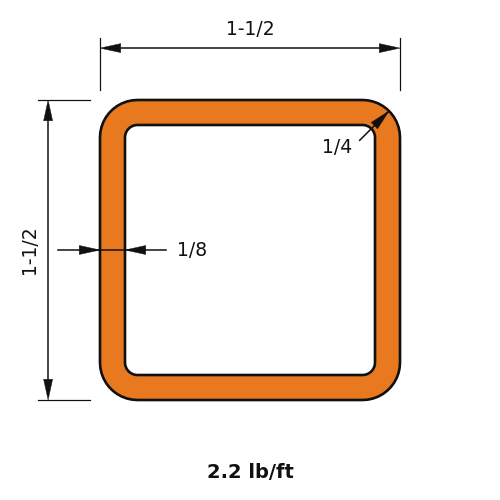

HSS Shapes - Square - HSS1.5x1.5x.125

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight2.2
Depth of Section1.5
Depth of Flat Wall1.15
Width of Section1.5
Width of Flat Wall1.15
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.188
Zx0.309
Sx0.251
rx0.557
Iy0.188
Zy0.309
Sy0.251
ry0.557
J0.316
C0.438

Full sortable table: Section properties table for this family
