HSS Shapes - Square - HSS1.5x1.5x.25

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

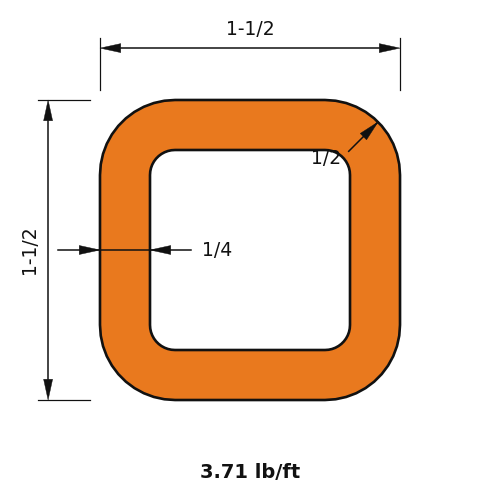

Dimensions

PropertyValue
Nominal Weight3.71
Depth of Section1.5
Depth of Flat Wall0.801
Width of Section1.5
Width of Flat Wall0.801
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.26
Zx0.469
Sx0.346
rx0.5
Iy0.26
Zy0.469
Sy0.346
ry0.5
J0.47
C0.699

Full sortable table: Section properties table for this family
