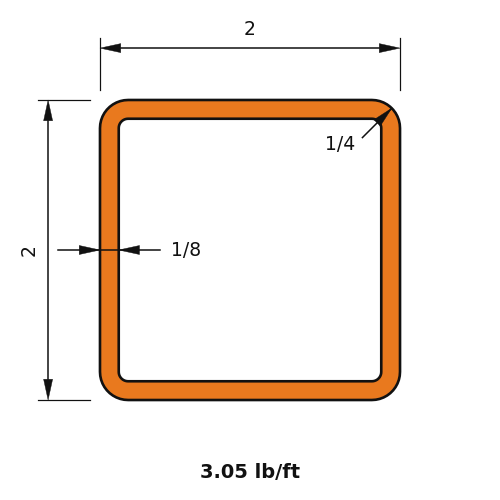

HSS Shapes - Square - HSS2x2x.125

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight3.05
Depth of Section2.0
Depth of Flat Wall1.65
Width of Section2.0
Width of Flat Wall1.65
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.486
Zx0.584
Sx0.486
rx0.761
Iy0.486
Zy0.584
Sy0.486
ry0.761
J0.796
C0.817

Full sortable table: Section properties table for this family
