W14x808 – W Shapes - American wide flange beams

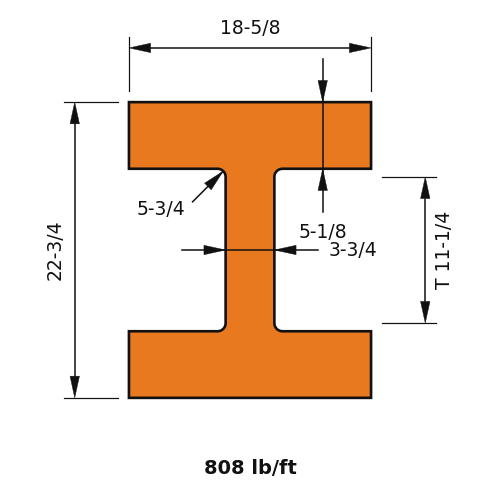

W14x808 is 22.8 in (579 mm) deep with an 18.6 in (472 mm) wide flange, and weighs 808 lb/ft (1202.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)808.0
Depth of Section (in)22.8
Width of Section (in)18.6
Web Thickness (in)3.74
Flange Thickness (in)5.12
Kdet Dimension (in)5.75
T Dimension (in)11.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)15900
Zx (in³)1830
Sx (in³)1390
rx (in)8.17
Iy (in⁴)5550
Zy (in³)930
Sy (in³)597
ry (in)4.83
J (in⁴)1840
Cw (in⁶)434000
rts (in)5.94
ho (in)17.7

Full sortable table: Section properties table for this family
