W14x730 – W Shapes - American wide flange beams

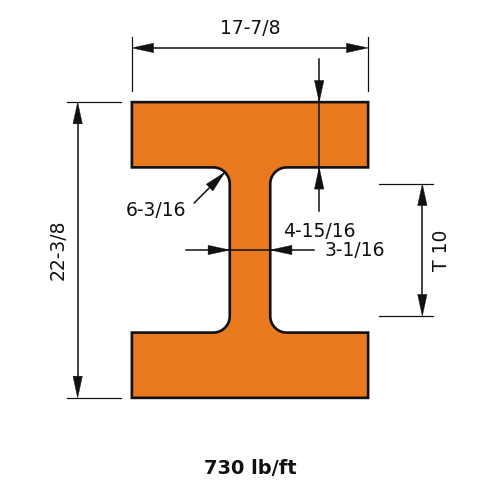

W14x730 is 22.4 in (569 mm) deep with a 17.9 in (455 mm) wide flange, and weighs 730 lb/ft (1086.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)730.0
Depth of Section (in)22.4
Width of Section (in)17.9
Web Thickness (in)3.07
Flange Thickness (in)4.91
Kdet Dimension (in)6.1875
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)14300
Zx (in³)1660
Sx (in³)1280
rx (in)8.17
Iy (in⁴)4720
Zy (in³)816
Sy (in³)527
ry (in)4.69
J (in⁴)1450
Cw (in⁶)362000
rts (in)5.68
ho (in)17.5

Full sortable table: Section properties table for this family
