HSS22x5/8 (HSS22x.625) – HSS Shapes - Round

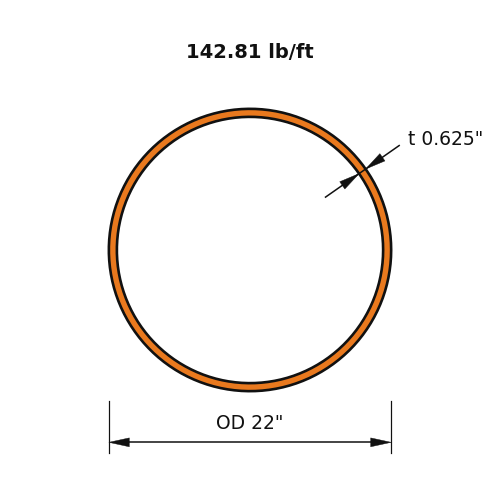

HSS22x5/8 is a 22 in (559 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 142.81 lb/ft (212.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)142.81
Outside Diameter (in)22.0
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2240
Zx (in³)267
Sx (in³)204
rx (in)7.58
Iy (in⁴)2240
Zy (in³)267
Sy (in³)204
ry (in)7.58
J (in⁴)4490
C (in³)408
