HSS22x3/4 (HSS22x.750) – HSS Shapes - Round

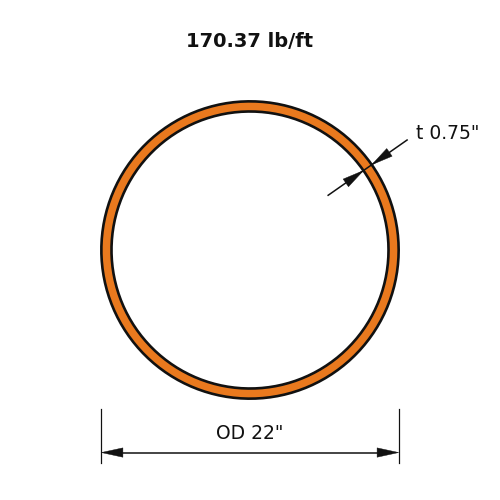

HSS22x3/4 is a 22 in (559 mm) diameter round hollow section with a 3/4 in (19 mm) nominal wall, weighing 170.37 lb/ft (253.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)170.37
Outside Diameter (in)22.0
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2650
Zx (in³)317
Sx (in³)241
rx (in)7.54
Iy (in⁴)2650
Zy (in³)317
Sy (in³)241
ry (in)7.54
J (in⁴)5300
C (in³)481

Full sortable table: Section properties table for this family
