HSS22x1/2 (HSS22x.500) – HSS Shapes - Round

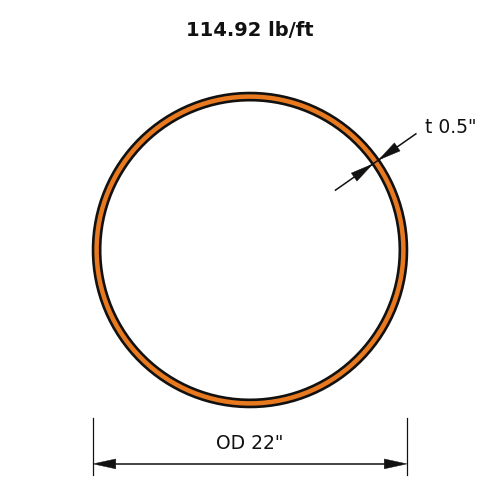

HSS22x1/2 is a 22 in (559 mm) diameter round hollow section with a 1/2 in (13 mm) nominal wall, weighing 114.92 lb/ft (171.0 kg/m).
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 114.92 |
| Outside Diameter (in) | 22.0 |
| Nominal Thickness (in) | 0.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 1820 |
| Zx (in³) | 216 |
| Sx (in³) | 166 |
| rx (in) | 7.62 |
| Iy (in⁴) | 1820 |
| Zy (in³) | 216 |
| Sy (in³) | 166 |
| ry (in) | 7.62 |
| J (in⁴) | 3650 |
| C (in³) | 331 |
