HSS22x3/8 (HSS22x.375) – HSS Shapes - Round

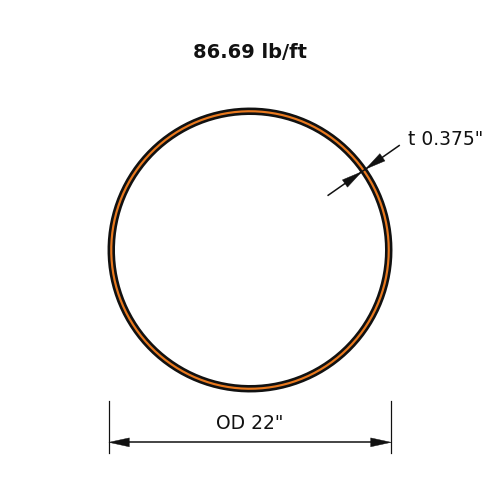

HSS22x3/8 is a 22 in (559 mm) diameter round hollow section with a 3/8 in (10 mm) nominal wall, weighing 86.69 lb/ft (129.0 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)86.69
Outside Diameter (in)22.0
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1390
Zx (in³)163
Sx (in³)126
rx (in)7.66
Iy (in⁴)1390
Zy (in³)163
Sy (in³)126
ry (in)7.66
J (in⁴)2780
C (in³)253

Full sortable table: Section properties table for this family
