HSS22x.313 – HSS Shapes - Round

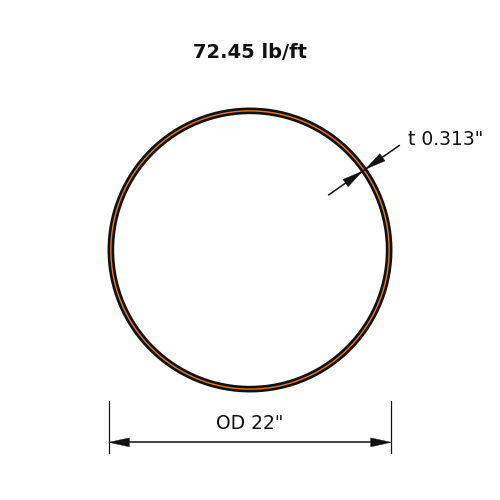

HSS22x.313 is a 22 in (559 mm) diameter round hollow section with a 0.313 in (8 mm) nominal wall, weighing 72.45 lb/ft (107.8 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)72.45
Outside Diameter (in)22.0
Nominal Thickness (in)0.313

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1170
Zx (in³)137
Sx (in³)106
rx (in)7.68
Iy (in⁴)1170
Zy (in³)137
Sy (in³)106
ry (in)7.68
J (in⁴)2340
C (in³)212

Full sortable table: Section properties table for this family
