HSS20x1 (HSS20x1.000) – HSS Shapes - Round

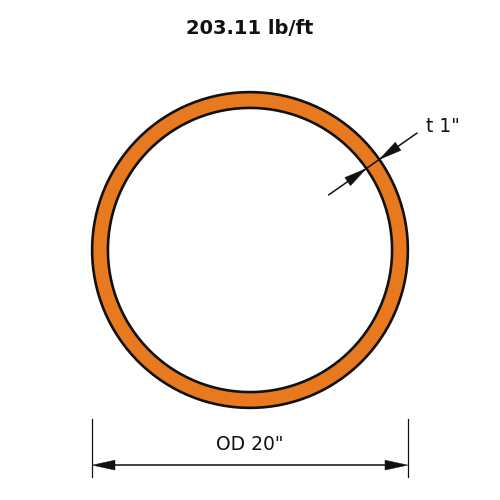

HSS20x1 is a 20 in (508 mm) diameter round hollow section with a 1 in (25 mm) nominal wall, weighing 203.11 lb/ft (302.3 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)203.11
Outside Diameter (in)20.0
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2540
Zx (in³)338
Sx (in³)254
rx (in)6.75
Iy (in⁴)2540
Zy (in³)338
Sy (in³)254
ry (in)6.75
J (in⁴)5080
C (in³)506
