HSS20x1/4 (HSS20x.250) – HSS Shapes - Round

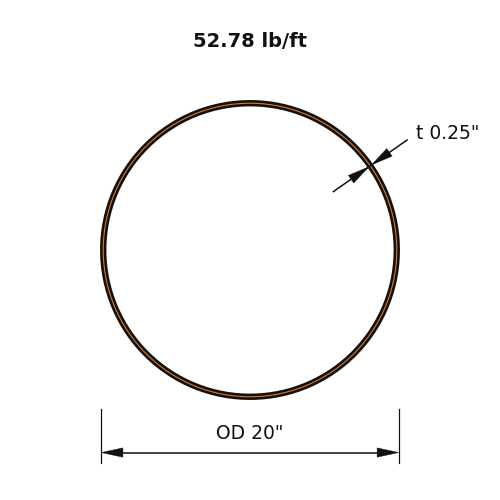

HSS20x1/4 is a 20 in (508 mm) diameter round hollow section with a 1/4 in (6 mm) nominal wall, weighing 52.78 lb/ft (78.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)52.78
Outside Diameter (in)20.0
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)705
Zx (in³)90.9
Sx (in³)70.5
rx (in)6.99
Iy (in⁴)705
Zy (in³)90.9
Sy (in³)70.5
ry (in)6.99
J (in⁴)1410
C (in³)141
