HSS18x1 (HSS18x1.000) – HSS Shapes - Round

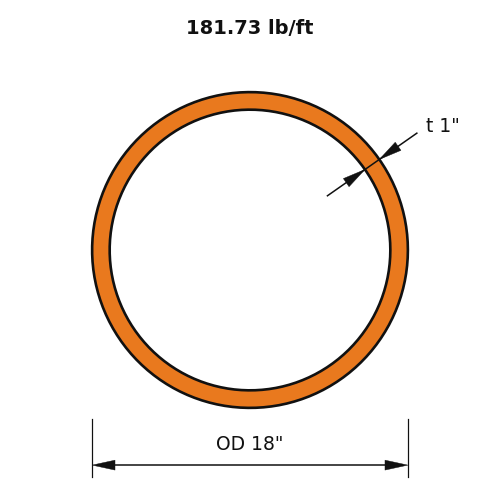

HSS18x1 is an 18 in (457 mm) diameter round hollow section with a 1 in (25 mm) nominal wall, weighing 181.73 lb/ft (270.4 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)181.73
Outside Diameter (in)18.0
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1820
Zx (in³)271
Sx (in³)202
rx (in)6.04
Iy (in⁴)1820
Zy (in³)271
Sy (in³)202
ry (in)6.04
J (in⁴)3640
C (in³)403

Full sortable table: Section properties table for this family
