HSS20x.313 – HSS Shapes - Round

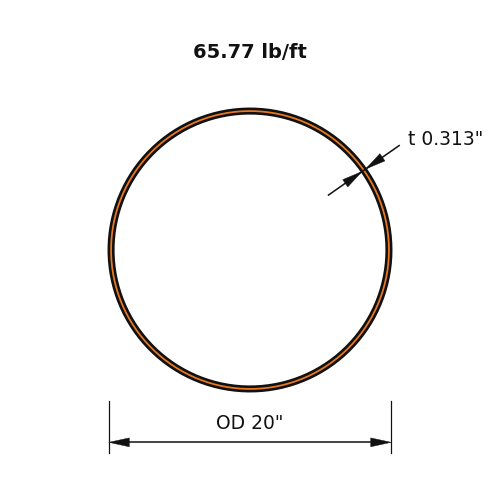

HSS20x.313 is a 20 in (508 mm) diameter round hollow section with a 0.313 in (8 mm) nominal wall, weighing 65.77 lb/ft (97.9 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)65.77
Outside Diameter (in)20.0
Nominal Thickness (in)0.313

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)874
Zx (in³)113
Sx (in³)87.4
rx (in)6.97
Iy (in⁴)874
Zy (in³)113
Sy (in³)87.4
ry (in)6.97
J (in⁴)1750
C (in³)175

Full sortable table: Section properties table for this family
