HSS18x1/4 (HSS18x.250) – HSS Shapes - Round

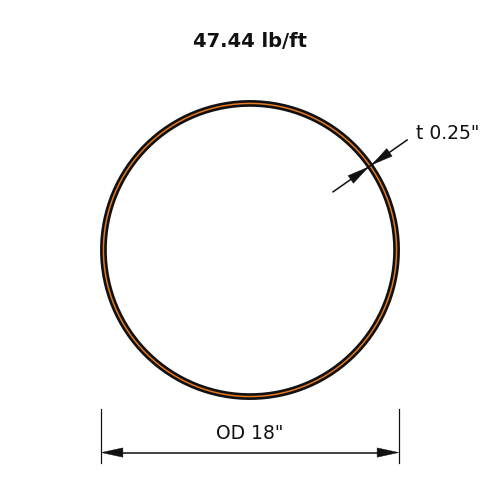

HSS18x1/4 is an 18 in (457 mm) diameter round hollow section with a 1/4 in (6 mm) nominal wall, weighing 47.44 lb/ft (70.6 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)47.44
Outside Diameter (in)18.0
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)512
Zx (in³)73.4
Sx (in³)56.9
rx (in)6.28
Iy (in⁴)512
Zy (in³)73.4
Sy (in³)56.9
ry (in)6.28
J (in⁴)1020
C (in³)114

Full sortable table: Section properties table for this family
