HSS16x1 (HSS16x1.000) – HSS Shapes - Round

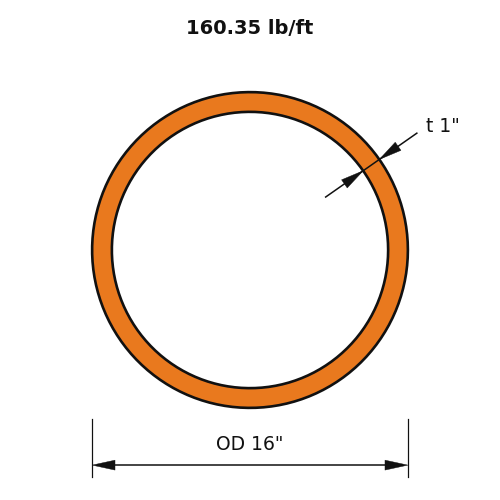

HSS16x1 is a 16 in (406 mm) diameter round hollow section with a 1 in (25 mm) nominal wall, weighing 160.35 lb/ft (238.6 kg/m).
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 160.35 |
| Outside Diameter (in) | 16.0 |
| Nominal Thickness (in) | 1.0 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 1250 |
| Zx (in³) | 211 |
| Sx (in³) | 157 |
| rx (in) | 5.34 |
| Iy (in⁴) | 1250 |
| Zy (in³) | 211 |
| Sy (in³) | 157 |
| ry (in) | 5.34 |
| J (in⁴) | 2510 |
| C (in³) | 312 |
