HSS18x.313 – HSS Shapes - Round

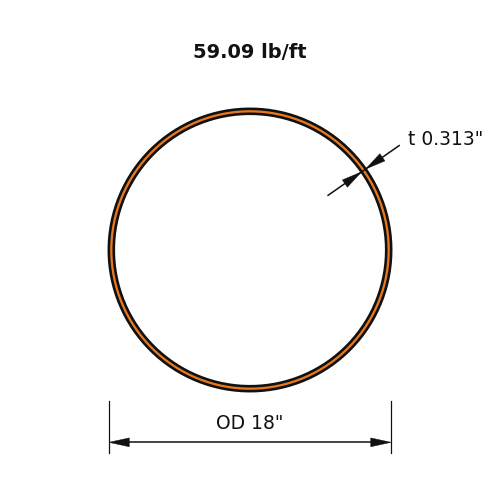

HSS18x.313 is an 18 in (457 mm) diameter round hollow section with a 0.313 in (8 mm) nominal wall, weighing 59.09 lb/ft (87.9 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)59.09
Outside Diameter (in)18.0
Nominal Thickness (in)0.313

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)634
Zx (in³)91.2
Sx (in³)70.4
rx (in)6.26
Iy (in⁴)634
Zy (in³)91.2
Sy (in³)70.4
ry (in)6.26
J (in⁴)1270
C (in³)141

Full sortable table: Section properties table for this family
