HSS16x7/8 (HSS16x.875) – HSS Shapes - Round

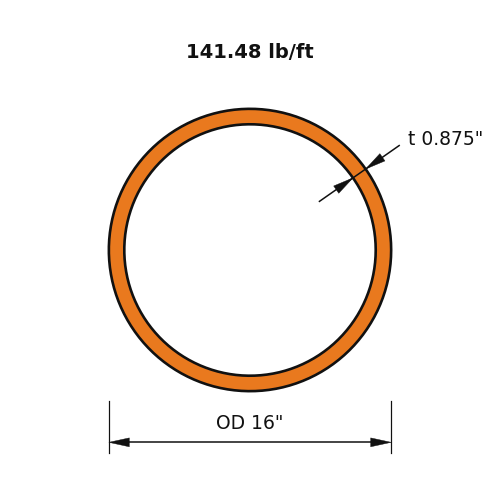

HSS16x7/8 is a 16 in (406 mm) diameter round hollow section with a 7/8 in (22 mm) nominal wall, weighing 141.48 lb/ft (210.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)141.48
Outside Diameter (in)16.0
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1120
Zx (in³)188
Sx (in³)140
rx (in)5.38
Iy (in⁴)1120
Zy (in³)188
Sy (in³)140
ry (in)5.38
J (in⁴)2240
C (in³)279

Full sortable table: Section properties table for this family
