HSS14x.188 – HSS Shapes - Round

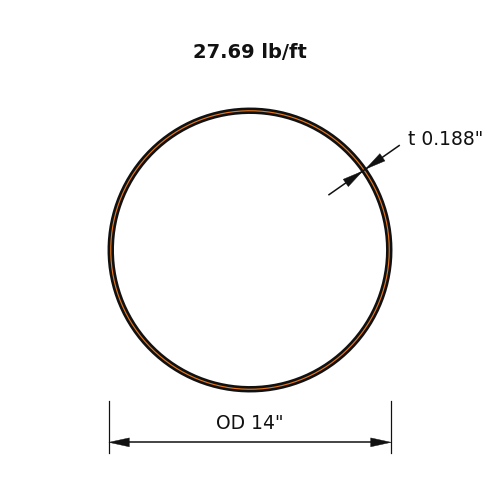

HSS14x.188 is a 14 in (356 mm) diameter round hollow section with a 0.188 in (5 mm) nominal wall, weighing 27.69 lb/ft (41.2 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)27.69
Outside Diameter (in)14.0
Nominal Thickness (in)0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)181
Zx (in³)33.3
Sx (in³)25.9
rx (in)4.89
Iy (in⁴)181
Zy (in³)33.3
Sy (in³)25.9
ry (in)4.89
J (in⁴)362
C (in³)51.7

Full sortable table: Section properties table for this family
