HSS13-3/8x5/8 (HSS13.375x.625) – HSS Shapes - Round

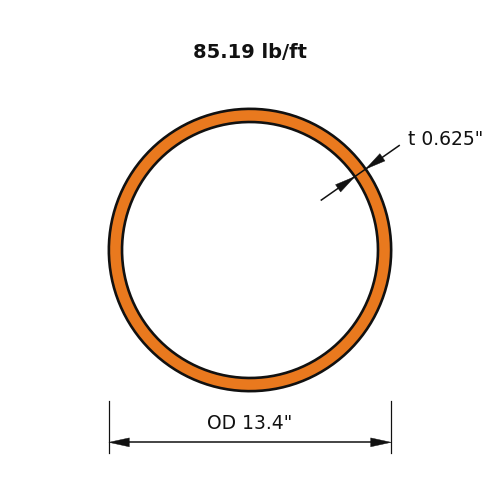

HSS13-3/8x5/8 is a 13.375 in (340 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 85.19 lb/ft (126.8 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)85.19
Outside Diameter (in)13.375
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)479
Zx (in³)95.2
Sx (in³)71.6
rx (in)4.53
Iy (in⁴)479
Zy (in³)95.2
Sy (in³)71.6
ry (in)4.53
J (in⁴)958
C (in³)143

Full sortable table: Section properties table for this family
