HSS Shapes - Round - HSS14X.250

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

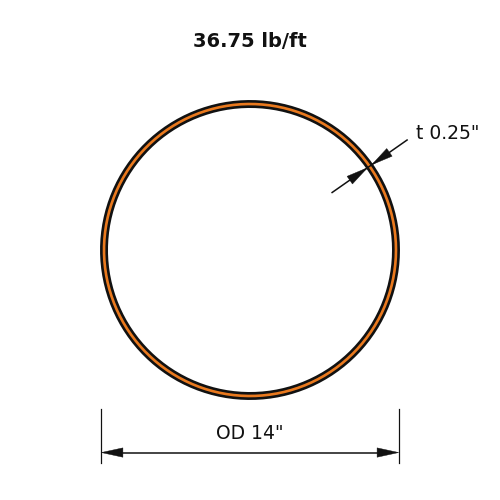

Dimensions

PropertyValue
Nominal Weight36.75
Outside Diameter14.0
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix239
Zx44.2
Sx34.1
rx4.87
Iy239
Zy44.2
Sy34.1
ry4.87
J478
C68.2

Full sortable table: Section properties table for this family
