HSS12x5/8 (HSS12x.625) – HSS Shapes - Round

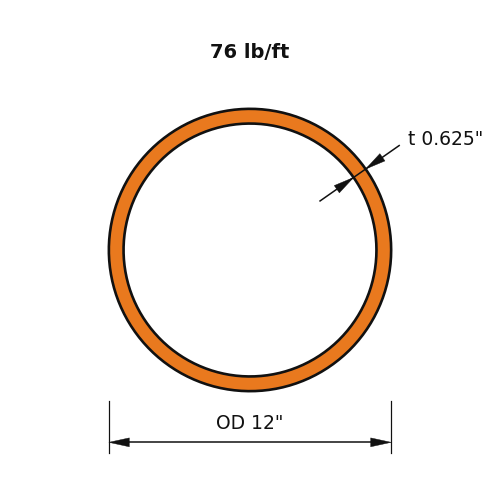

HSS12x5/8 is a 12 in (305 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 76 lb/ft (113.1 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)76.0
Outside Diameter (in)12.0
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)341
Zx (in³)75.9
Sx (in³)56.8
rx (in)4.04
Iy (in⁴)341
Zy (in³)75.9
Sy (in³)56.8
ry (in)4.04
J (in⁴)681
C (in³)113

Full sortable table: Section properties table for this family
