HSS12.75x.188 – HSS Shapes - Round

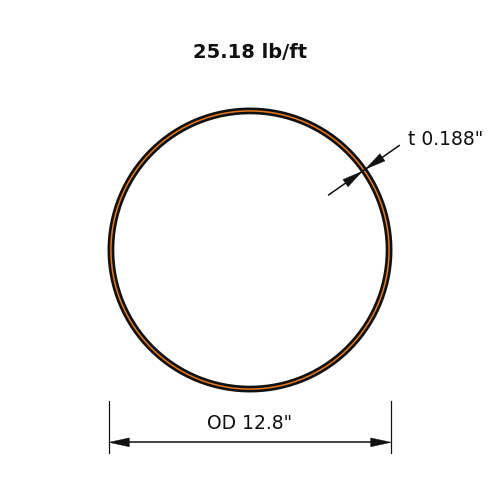

HSS12.75x.188 is a 12.75 in (324 mm) diameter round hollow section with a 0.188 in (5 mm) nominal wall, weighing 25.18 lb/ft (37.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)25.18
Outside Diameter (in)12.75
Nominal Thickness (in)0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)136
Zx (in³)27.6
Sx (in³)21.4
rx (in)4.45
Iy (in⁴)136
Zy (in³)27.6
Sy (in³)21.4
ry (in)4.45
J (in⁴)272
C (in³)42.7

Full sortable table: Section properties table for this family
