HSS12x1/2 (HSS12x.500) – HSS Shapes - Round

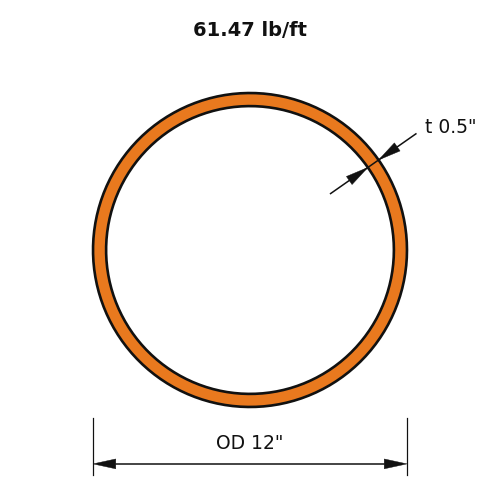

HSS12x1/2 is a 12 in (305 mm) diameter round hollow section with a 1/2 in (13 mm) nominal wall, weighing 61.47 lb/ft (91.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)61.47
Outside Diameter (in)12.0
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)281
Zx (in³)61.9
Sx (in³)46.8
rx (in)4.08
Iy (in⁴)281
Zy (in³)61.9
Sy (in³)46.8
ry (in)4.08
J (in⁴)561
C (in³)93.3

Full sortable table: Section properties table for this family
