HSS12x3/8 (HSS12x.375) – HSS Shapes - Round

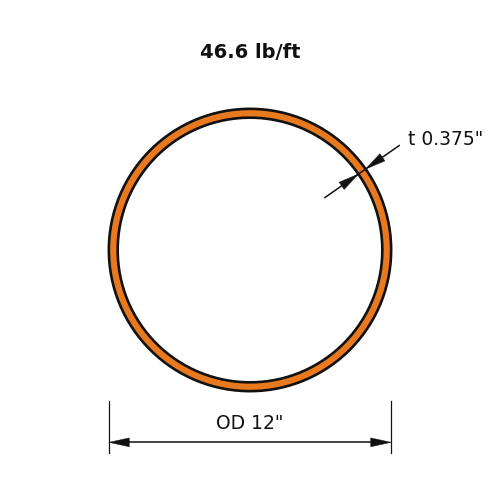

HSS12x3/8 is a 12 in (305 mm) diameter round hollow section with a 3/8 in (10 mm) nominal wall, weighing 46.6 lb/ft (69.3 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)46.6
Outside Diameter (in)12.0
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)217
Zx (in³)47.4
Sx (in³)36.1
rx (in)4.12
Iy (in⁴)217
Zy (in³)47.4
Sy (in³)36.1
ry (in)4.12
J (in⁴)434
C (in³)72.2

Full sortable table: Section properties table for this family
