HSS12x1/4 (HSS12x.250) – HSS Shapes - Round

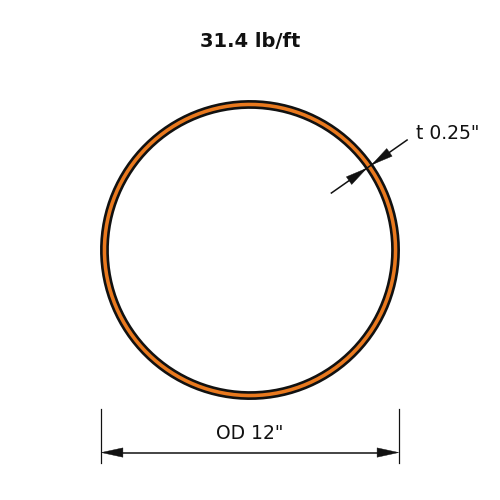

HSS12x1/4 is a 12 in (305 mm) diameter round hollow section with a 1/4 in (6 mm) nominal wall, weighing 31.4 lb/ft (46.7 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)31.4
Outside Diameter (in)12.0
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)149
Zx (in³)32.2
Sx (in³)24.8
rx (in)4.16
Iy (in⁴)149
Zy (in³)32.2
Sy (in³)24.8
ry (in)4.16
J (in⁴)298
C (in³)49.6

Full sortable table: Section properties table for this family
