WT18x175 – WT Shapes

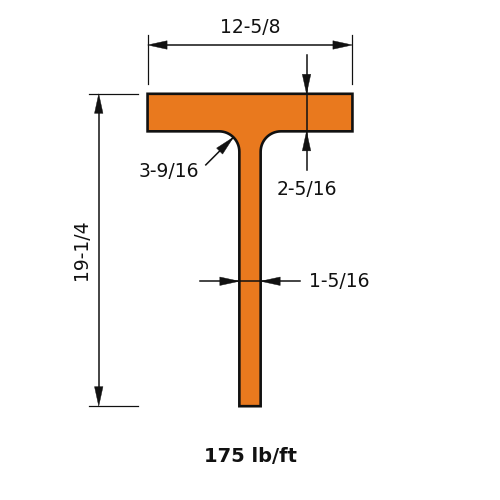

WT18x175 is a tee 19.3 in (490 mm) deep with a 12.6 in (320 mm) flange, weighing 175 lb/ft (260.4 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)175.0
Depth of Section (in)19.3
Width of Section (in)12.6
Web Thickness (in)1.3
Flange Thickness (in)2.32
Kdet Dimension (in)3.5625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1720
Zx (in³)220
Sx (in³)123
rx (in)5.78
Iy (in⁴)390
Zy (in³)99.4
Sy (in³)61.9
ry (in)2.75
J (in⁴)64.1
Cw (in⁶)538
ro (in)7.62
H (-)0.705
