WT18x159 – WT Shapes

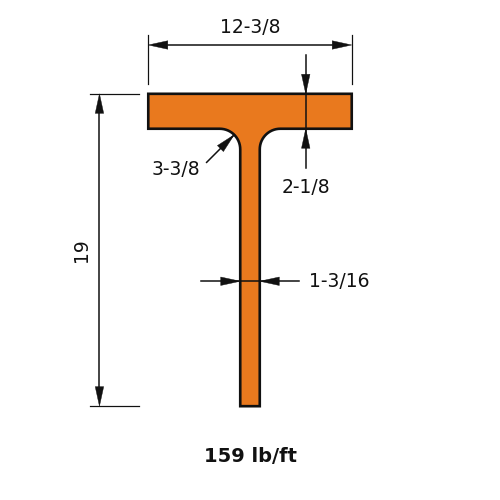

WT18x159 is a tee 19.1 in (485 mm) deep with a 12.4 in (315 mm) flange, weighing 159 lb/ft (236.6 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)159.0
Depth of Section (in)19.1
Width of Section (in)12.4
Web Thickness (in)1.18
Flange Thickness (in)2.13
Kdet Dimension (in)3.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1530
Zx (in³)197
Sx (in³)110
rx (in)5.72
Iy (in⁴)341
Zy (in³)87.9
Sy (in³)55
ry (in)2.7
J (in⁴)48.9
Cw (in⁶)396
ro (in)7.54
H (-)0.704
