WT18x193.5 – WT Shapes

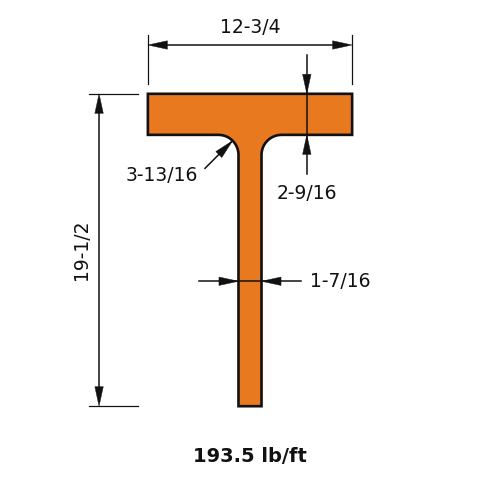

WT18x193.5 is a tee 19.5 in (495 mm) deep with a 12.7 in (323 mm) flange, weighing 193.5 lb/ft (288.0 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)193.5
Depth of Section (in)19.5
Width of Section (in)12.7
Web Thickness (in)1.42
Flange Thickness (in)2.56
Kdet Dimension (in)3.8125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1910
Zx (in³)244
Sx (in³)136
rx (in)5.8
Iy (in⁴)441
Zy (in³)112
Sy (in³)69.4
ry (in)2.79
J (in⁴)85.3
Cw (in⁶)720
ro (in)7.65
H (-)0.707

Full sortable table: Section properties table for this family
