WT18x143 – WT Shapes

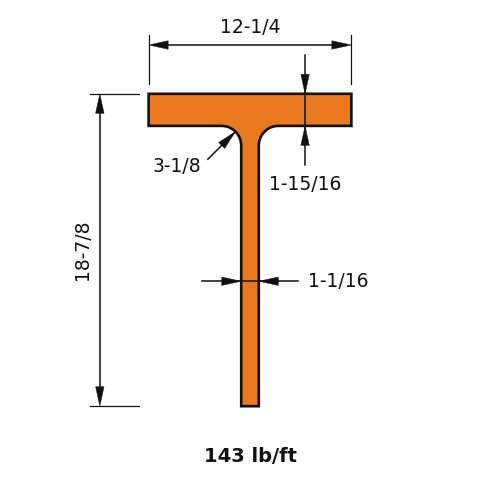

WT18x143 is a tee 18.9 in (480 mm) deep with a 12.3 in (312 mm) flange, weighing 143 lb/ft (212.8 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)143.0
Depth of Section (in)18.9
Width of Section (in)12.3
Web Thickness (in)1.06
Flange Thickness (in)1.93
Kdet Dimension (in)3.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1360
Zx (in³)175
Sx (in³)98
rx (in)5.69
Iy (in⁴)301
Zy (in³)77.8
Sy (in³)48.9
ry (in)2.68
J (in⁴)36.2
Cw (in⁶)284
ro (in)7.48
H (-)0.706

Full sortable table: Section properties table for this family
