WT10.5x124 – WT Shapes

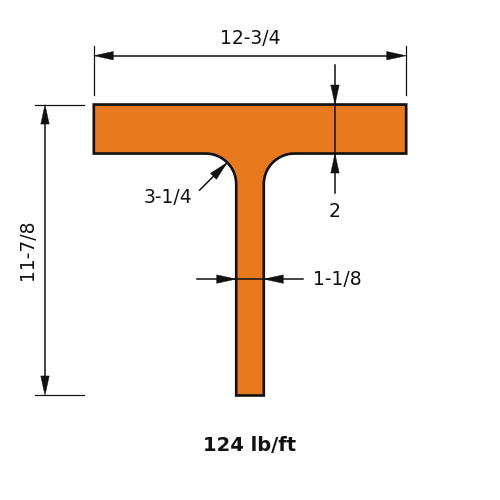

WT10.5x124 is a tee 11.9 in (302 mm) deep with a 12.8 in (325 mm) flange, weighing 124 lb/ft (184.5 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)124.0
Depth of Section (in)11.9
Width of Section (in)12.8
Web Thickness (in)1.1
Flange Thickness (in)1.99
Kdet Dimension (in)3.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)368
Zx (in³)75.7
Sx (in³)40.3
rx (in)3.15
Iy (in⁴)349
Zy (in³)84.8
Sy (in³)54.5
ry (in)3.07
J (in⁴)40.2
Cw (in⁶)163
ro (in)4.75
H (-)0.86

Full sortable table: Section properties table for this family
