WT10.5x111.5 – WT Shapes

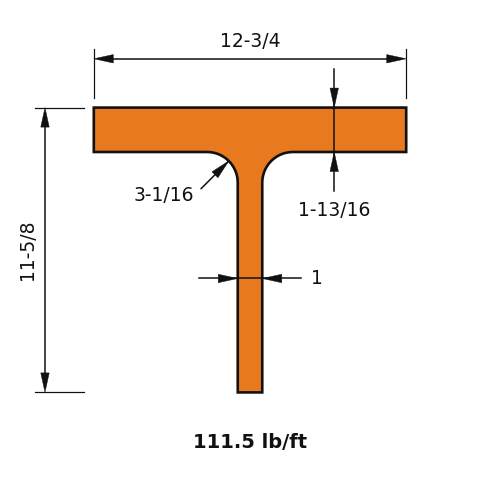

WT10.5x111.5 is a tee 11.7 in (297 mm) deep with a 12.7 in (323 mm) flange, weighing 111.5 lb/ft (165.9 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)111.5
Depth of Section (in)11.7
Width of Section (in)12.7
Web Thickness (in)1.0
Flange Thickness (in)1.79
Kdet Dimension (in)3.0625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)324
Zx (in³)66.7
Sx (in³)35.9
rx (in)3.12
Iy (in⁴)307
Zy (in³)74.9
Sy (in³)48.3
ry (in)3.04
J (in⁴)29.6
Cw (in⁶)117
ro (in)4.7
H (-)0.859

Full sortable table: Section properties table for this family
