WT10.5x137.5 – WT Shapes

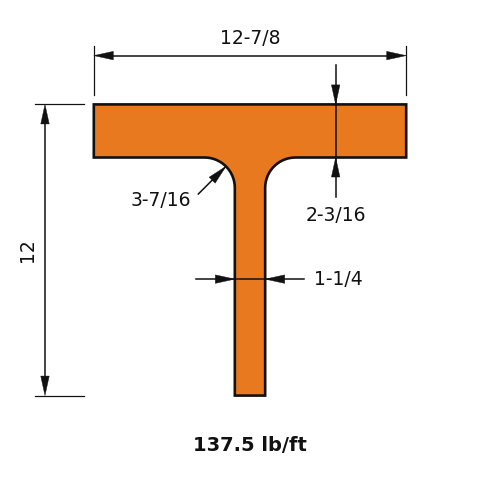

WT10.5x137.5 is a tee 12.1 in (307 mm) deep with a 12.9 in (328 mm) flange, weighing 137.5 lb/ft (204.6 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)137.5
Depth of Section (in)12.1
Width of Section (in)12.9
Web Thickness (in)1.22
Flange Thickness (in)2.19
Kdet Dimension (in)3.4375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)420
Zx (in³)86.3
Sx (in³)45.7
rx (in)3.2
Iy (in⁴)394
Zy (in³)95.1
Sy (in³)61.1
ry (in)3.1
J (in⁴)53.5
Cw (in⁶)224
ro (in)4.81
H (-)0.859

Full sortable table: Section properties table for this family
