W5x16 – W Shapes - American wide flange beams

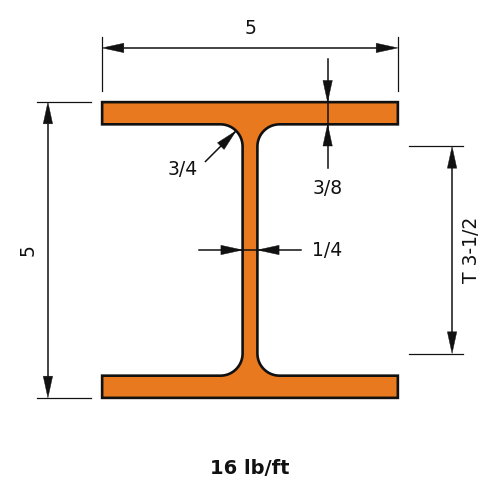

W5x16 is 5.01 in (127 mm) deep with a 5 in (127 mm) wide flange, and weighs 16 lb/ft (23.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)16.0
Depth of Section (in)5.01
Width of Section (in)5.0
Web Thickness (in)0.24
Flange Thickness (in)0.36
Kdet Dimension (in)0.75
T Dimension (in)3.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)21.4
Zx (in³)9.63
Sx (in³)8.55
rx (in)2.13
Iy (in⁴)7.51
Zy (in³)4.58
Sy (in³)3
ry (in)1.26
J (in⁴)0.192
Cw (in⁶)40.6
rts (in)1.43
ho (in)4.65
