W5x19 – W Shapes - American wide flange beams

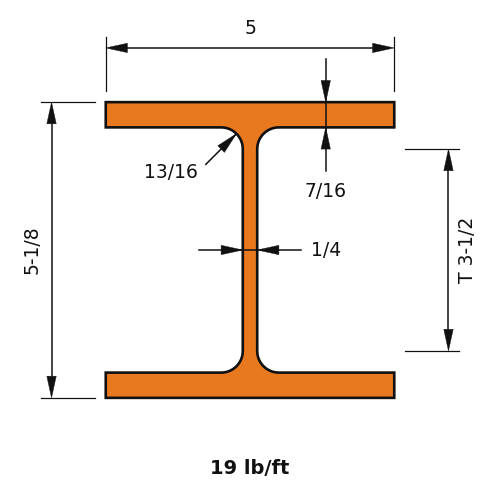

W5x19 is 5.15 in (131 mm) deep with a 5.03 in (128 mm) wide flange, and weighs 19 lb/ft (28.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)19.0
Depth of Section (in)5.15
Width of Section (in)5.03
Web Thickness (in)0.27
Flange Thickness (in)0.43
Kdet Dimension (in)0.8125
T Dimension (in)3.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)26.3
Zx (in³)11.6
Sx (in³)10.2
rx (in)2.17
Iy (in⁴)9.13
Zy (in³)5.53
Sy (in³)3.63
ry (in)1.28
J (in⁴)0.316
Cw (in⁶)50.9
rts (in)1.45
ho (in)4.72
