W4x13 – W Shapes - American wide flange beams

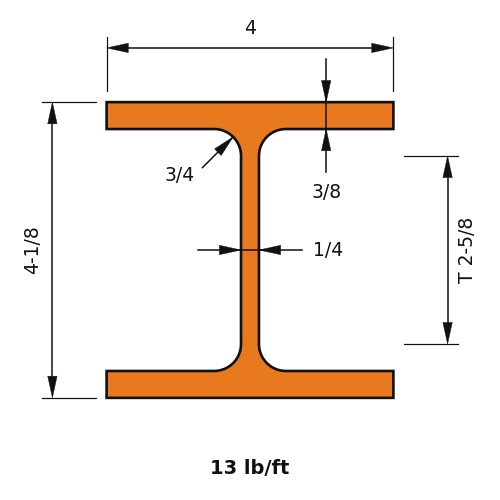

W4x13 is 4.16 in (106 mm) deep with a 4.06 in (103 mm) wide flange, and weighs 13 lb/ft (19.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)13.0
Depth of Section (in)4.16
Width of Section (in)4.06
Web Thickness (in)0.28
Flange Thickness (in)0.345
Kdet Dimension (in)0.75
T Dimension (in)2.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)11.3
Zx (in³)6.28
Sx (in³)5.46
rx (in)1.72
Iy (in⁴)3.86
Zy (in³)2.92
Sy (in³)1.9
ry (in)1
J (in⁴)0.151
Cw (in⁶)14
rts (in)1.16
ho (in)3.82
