W6x8.5 – W Shapes - American wide flange beams

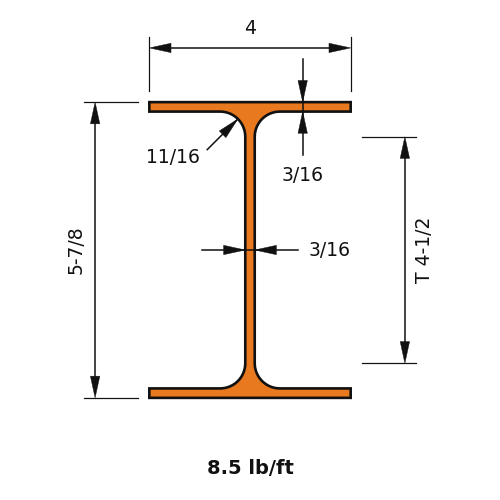

W6x8.5 is 5.83 in (148 mm) deep with a 3.94 in (100 mm) wide flange, and weighs 8.5 lb/ft (12.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)8.5
Depth of Section (in)5.83
Width of Section (in)3.94
Web Thickness (in)0.17
Flange Thickness (in)0.195
Kdet Dimension (in)0.6875
T Dimension (in)4.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)14.9
Zx (in³)5.73
Sx (in³)5.1
rx (in)2.43
Iy (in⁴)1.99
Zy (in³)1.56
Sy (in³)1.01
ry (in)0.89
J (in⁴)0.0333
Cw (in⁶)15.8
rts (in)1.05
ho (in)5.64

Full sortable table: Section properties table for this family
