W6x16 – W Shapes - American wide flange beams

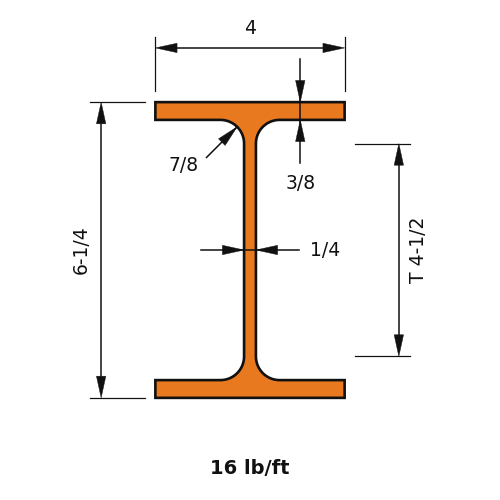

W6x16 is 6.28 in (160 mm) deep with a 4.03 in (102 mm) wide flange, and weighs 16 lb/ft (23.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)16.0
Depth of Section (in)6.28
Width of Section (in)4.03
Web Thickness (in)0.26
Flange Thickness (in)0.405
Kdet Dimension (in)0.875
T Dimension (in)4.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)32.1
Zx (in³)11.7
Sx (in³)10.2
rx (in)2.6
Iy (in⁴)4.43
Zy (in³)3.39
Sy (in³)2.2
ry (in)0.967
J (in⁴)0.223
Cw (in⁶)38.2
rts (in)1.13
ho (in)5.88

Full sortable table: Section properties table for this family
