W6x15 – W Shapes - American wide flange beams

W6x15 is 5.99 in (152 mm) deep with a 5.99 in (152 mm) wide flange, and weighs 15 lb/ft (22.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

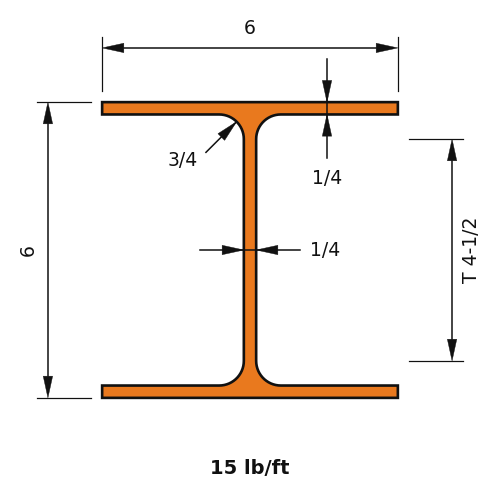

Dimensions

PropertyValue
Nominal Weight (lb/ft)15.0
Depth of Section (in)5.99
Width of Section (in)5.99
Web Thickness (in)0.23
Flange Thickness (in)0.26
Kdet Dimension (in)0.75
T Dimension (in)4.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)29.1
Zx (in³)10.8
Sx (in³)9.72
rx (in)2.56
Iy (in⁴)9.32
Zy (in³)4.75
Sy (in³)3.11
ry (in)1.45
J (in⁴)0.101
Cw (in⁶)76.5
rts (in)1.66
ho (in)5.73

Full sortable table: Section properties table for this family
