W6x12 – W Shapes - American wide flange beams

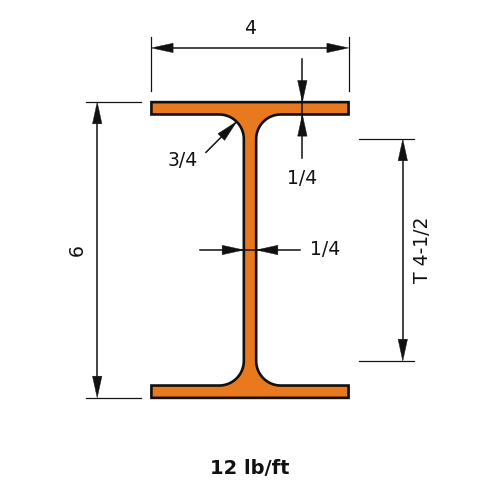

W6x12 is 6.03 in (153 mm) deep with a 4 in (102 mm) wide flange, and weighs 12 lb/ft (17.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)12.0
Depth of Section (in)6.03
Width of Section (in)4.0
Web Thickness (in)0.23
Flange Thickness (in)0.28
Kdet Dimension (in)0.75
T Dimension (in)4.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)22.1
Zx (in³)8.3
Sx (in³)7.31
rx (in)2.49
Iy (in⁴)2.99
Zy (in³)2.32
Sy (in³)1.5
ry (in)0.918
J (in⁴)0.0903
Cw (in⁶)24.7
rts (in)1.08
ho (in)5.75
