W8x10 – W Shapes - American wide flange beams

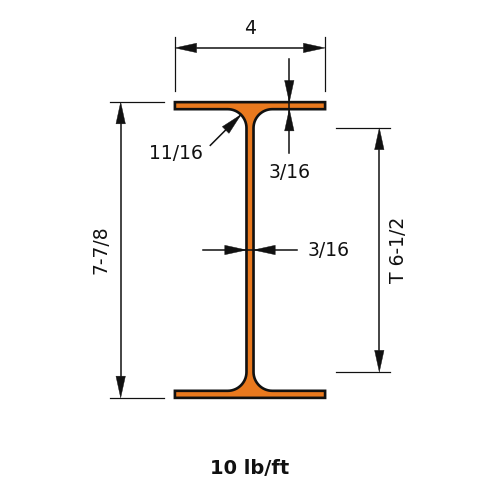

W8x10 is 7.89 in (200 mm) deep with a 3.94 in (100 mm) wide flange, and weighs 10 lb/ft (14.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)10.0
Depth of Section (in)7.89
Width of Section (in)3.94
Web Thickness (in)0.17
Flange Thickness (in)0.205
Kdet Dimension (in)0.6875
T Dimension (in)6.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)30.8
Zx (in³)8.87
Sx (in³)7.81
rx (in)3.22
Iy (in⁴)2.09
Zy (in³)1.66
Sy (in³)1.06
ry (in)0.841
J (in⁴)0.0426
Cw (in⁶)30.9
rts (in)1.01
ho (in)7.69

Full sortable table: Section properties table for this family
