W8x13 – W Shapes - American wide flange beams

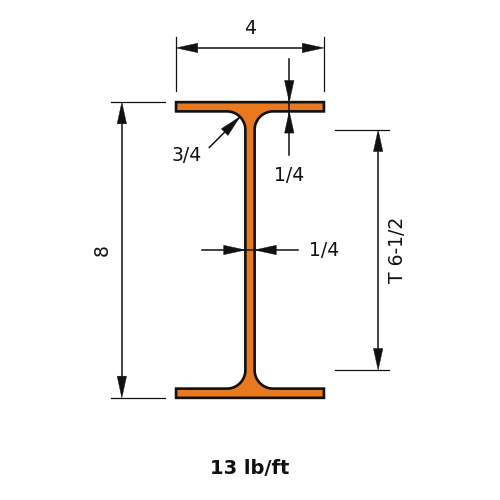

W8x13 is 7.99 in (203 mm) deep with a 4 in (102 mm) wide flange, and weighs 13 lb/ft (19.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)13.0
Depth of Section (in)7.99
Width of Section (in)4.0
Web Thickness (in)0.23
Flange Thickness (in)0.255
Kdet Dimension (in)0.75
T Dimension (in)6.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)39.6
Zx (in³)11.4
Sx (in³)9.91
rx (in)3.21
Iy (in⁴)2.73
Zy (in³)2.15
Sy (in³)1.37
ry (in)0.843
J (in⁴)0.0871
Cw (in⁶)40.8
rts (in)1.03
ho (in)7.74
