W6x25 – W Shapes - American wide flange beams

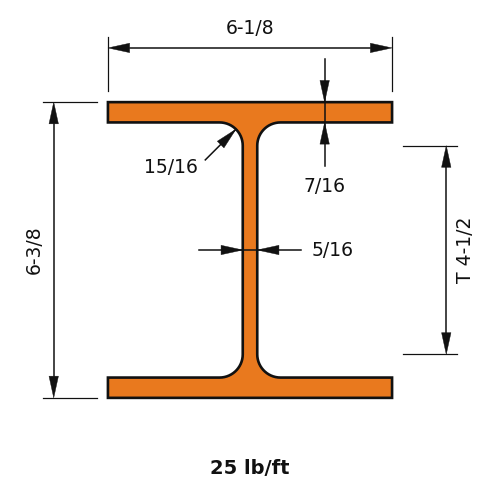

W6x25 is 6.38 in (162 mm) deep with a 6.08 in (154 mm) wide flange, and weighs 25 lb/ft (37.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)25.0
Depth of Section (in)6.38
Width of Section (in)6.08
Web Thickness (in)0.32
Flange Thickness (in)0.455
Kdet Dimension (in)0.9375
T Dimension (in)4.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)53.4
Zx (in³)18.9
Sx (in³)16.7
rx (in)2.7
Iy (in⁴)17.1
Zy (in³)8.56
Sy (in³)5.61
ry (in)1.52
J (in⁴)0.461
Cw (in⁶)150
rts (in)1.74
ho (in)5.93

Full sortable table: Section properties table for this family
