W8x21 – W Shapes - American wide flange beams

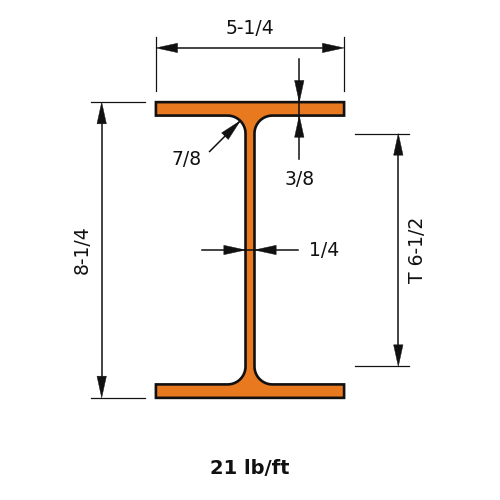

W8x21 is 8.28 in (210 mm) deep with a 5.27 in (134 mm) wide flange, and weighs 21 lb/ft (31.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)21.0
Depth of Section (in)8.28
Width of Section (in)5.27
Web Thickness (in)0.25
Flange Thickness (in)0.4
Kdet Dimension (in)0.875
T Dimension (in)6.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)75.3
Zx (in³)20.4
Sx (in³)18.2
rx (in)3.49
Iy (in⁴)9.77
Zy (in³)5.69
Sy (in³)3.71
ry (in)1.26
J (in⁴)0.282
Cw (in⁶)152
rts (in)1.46
ho (in)7.88

Full sortable table: Section properties table for this family
