W8x24 – W Shapes - American wide flange beams

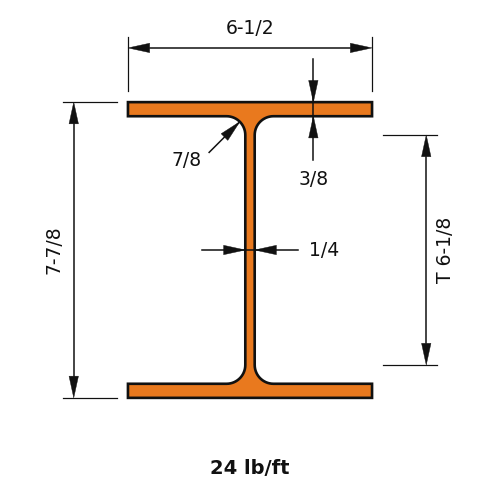

W8x24 is 7.93 in (201 mm) deep with a 6.5 in (165 mm) wide flange, and weighs 24 lb/ft (35.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)24.0
Depth of Section (in)7.93
Width of Section (in)6.5
Web Thickness (in)0.245
Flange Thickness (in)0.4
Kdet Dimension (in)0.875
T Dimension (in)6.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)82.7
Zx (in³)23.1
Sx (in³)20.9
rx (in)3.42
Iy (in⁴)18.3
Zy (in³)8.57
Sy (in³)5.63
ry (in)1.61
J (in⁴)0.346
Cw (in⁶)259
rts (in)1.81
ho (in)7.53
