W8x18 – W Shapes - American wide flange beams

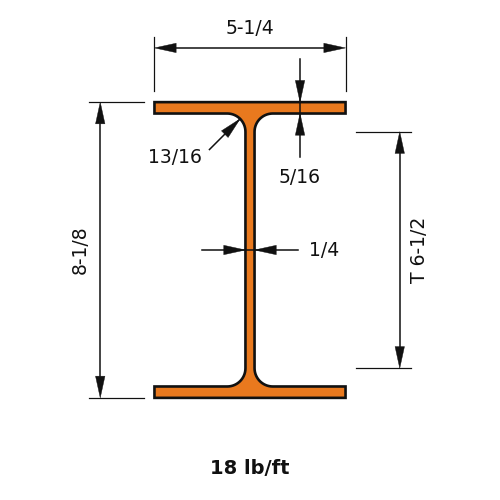

W8x18 is 8.14 in (207 mm) deep with a 5.25 in (133 mm) wide flange, and weighs 18 lb/ft (26.8 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 18.0 |
| Depth of Section (in) | 8.14 |
| Width of Section (in) | 5.25 |
| Web Thickness (in) | 0.23 |
| Flange Thickness (in) | 0.33 |
| Kdet Dimension (in) | 0.8125 |
| T Dimension (in) | 6.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 61.9 |
| Zx (in³) | 17 |
| Sx (in³) | 15.2 |
| rx (in) | 3.43 |
| Iy (in⁴) | 7.97 |
| Zy (in³) | 4.66 |
| Sy (in³) | 3.04 |
| ry (in) | 1.23 |
| J (in⁴) | 0.172 |
| Cw (in⁶) | 122 |
| rts (in) | 1.43 |
| ho (in) | 7.81 |
Full sortable table: Section properties table for this family
