W10x39 – W Shapes - American wide flange beams

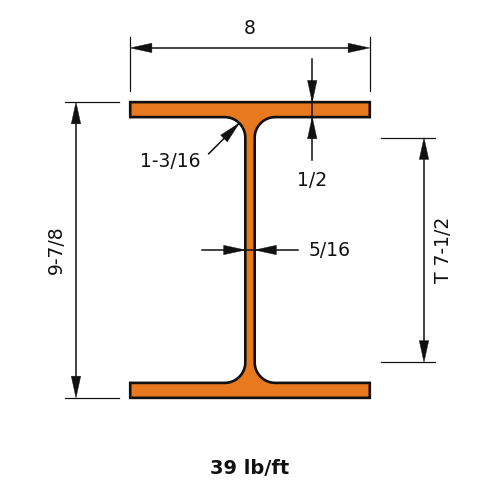

W10x39 is 9.92 in (252 mm) deep with a 7.99 in (203 mm) wide flange, and weighs 39 lb/ft (58.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)39.0
Depth of Section (in)9.92
Width of Section (in)7.99
Web Thickness (in)0.315
Flange Thickness (in)0.53
Kdet Dimension (in)1.1875
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)209
Zx (in³)46.8
Sx (in³)42.1
rx (in)4.27
Iy (in⁴)45
Zy (in³)17.2
Sy (in³)11.3
ry (in)1.98
J (in⁴)0.976
Cw (in⁶)992
rts (in)2.24
ho (in)9.39

Full sortable table: Section properties table for this family
