W10x33 – W Shapes - American wide flange beams

W10x33 is 9.73 in (247 mm) deep with a 7.96 in (202 mm) wide flange, and weighs 33 lb/ft (49.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

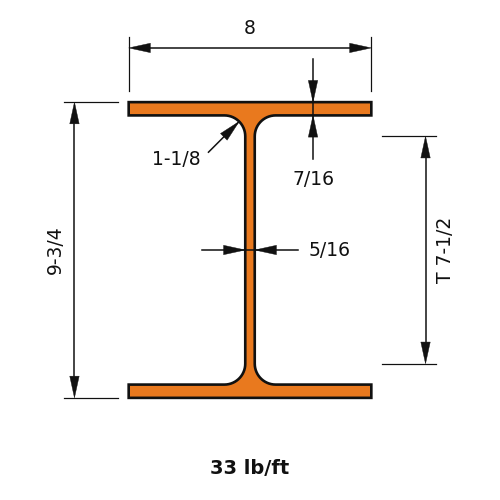

Dimensions

PropertyValue
Nominal Weight (lb/ft)33.0
Depth of Section (in)9.73
Width of Section (in)7.96
Web Thickness (in)0.29
Flange Thickness (in)0.435
Kdet Dimension (in)1.125
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)171
Zx (in³)38.8
Sx (in³)35
rx (in)4.19
Iy (in⁴)36.6
Zy (in³)14
Sy (in³)9.2
ry (in)1.94
J (in⁴)0.583
Cw (in⁶)791
rts (in)2.2
ho (in)9.3

Full sortable table: Section properties table for this family
