W10x45 – W Shapes - American wide flange beams

W10x45 is 10.1 in (257 mm) deep with an 8.02 in (204 mm) wide flange, and weighs 45 lb/ft (67.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

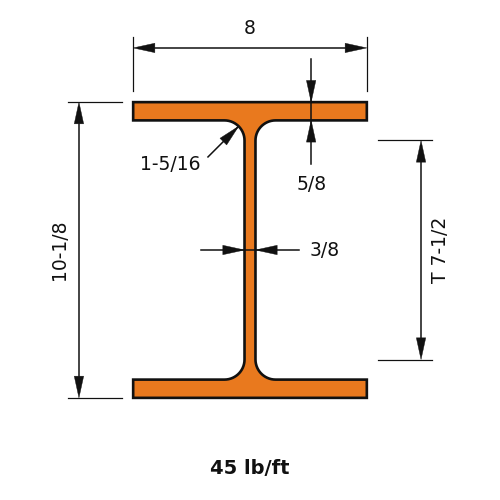

Dimensions

PropertyValue
Nominal Weight (lb/ft)45.0
Depth of Section (in)10.1
Width of Section (in)8.02
Web Thickness (in)0.35
Flange Thickness (in)0.62
Kdet Dimension (in)1.3125
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)248
Zx (in³)54.9
Sx (in³)49.1
rx (in)4.32
Iy (in⁴)53.4
Zy (in³)20.3
Sy (in³)13.3
ry (in)2.01
J (in⁴)1.51
Cw (in⁶)1200
rts (in)2.27
ho (in)9.48
