W10x49 – W Shapes - American wide flange beams

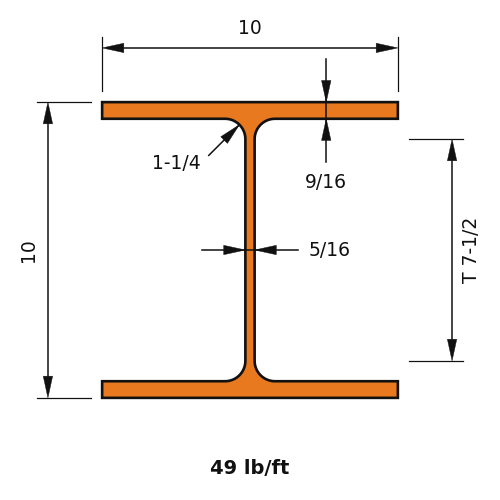

W10x49 is 10 in (254 mm) deep with a 10 in (254 mm) wide flange, and weighs 49 lb/ft (72.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)49.0
Depth of Section (in)10.0
Width of Section (in)10.0
Web Thickness (in)0.34
Flange Thickness (in)0.56
Kdet Dimension (in)1.25
T Dimension (in)7.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)272
Zx (in³)60.4
Sx (in³)54.6
rx (in)4.35
Iy (in⁴)93.4
Zy (in³)28.3
Sy (in³)18.7
ry (in)2.54
J (in⁴)1.39
Cw (in⁶)2070
rts (in)2.84
ho (in)9.44
